10.1 inch TFT LCD Display 800*1280
Product Description:
Product Overview - TFT LCD Display
The Arduino TFT LCD Display is a high-quality, high-resolution display designed for use with various electronic devices. This display boasts a number of impressive features that make it an ideal choice for a wide range of applications.
Number of Pixels: 800*3RGB(H)X1280(V)
The TFT LCD Display has a resolution of 800*3RGB(H)X1280(V), resulting in a total of 1,024,000 pixels. This high number of pixels ensures sharp and clear images, making it perfect for applications that require detailed graphics and text.
Active Area: 135.36(H) * 216.576(V)
The active area of the TFT LCD Display measures 135.36(H) * 216.576(V) in millimeters, providing ample space for displaying content. This allows for a larger screen size and better viewing experience for the user.
Lumens Degrees: 300-500cd/m²
The TFT LCD Display has a lumens degree of 300-500cd/m², making it a high brightness display. This level of brightness ensures that the display can be easily viewed in various lighting conditions, making it suitable for both indoor and outdoor use.
Key Features
- High-quality Arduino TFT LCD Display
- Normally black LCD type for superior image quality
- 800*3RGB(H)X1280(V) resolution for sharp and clear images
- Large active area of 135.36(H) * 216.576(V) for better viewing experience
- Small pixel pitch of 0.1692*0.1692 for high pixel density
- High brightness of 300-500cd/m² for easy viewing in various lighting conditions
Features:
- Product Name: TFT LCD Display
- Size: 10.1 inches
- Model Number: TXW100055BO-HS
- Mechanical Outline Size(W*H*T): 143mm*228.6mm*2.8mm
- Lumens Degrees: 300-500cd/m²
- IC/LCM Driver IC: NV3051F-L
The high brightness TFT LCD Display is perfect for a wide range of applications, including:
- Consumer electronics: smartphones, tablets, televisions
- Industrial equipment: medical devices, monitoring systems
- Gaming devices: handheld consoles, arcade machines
- Automotive: infotainment systems, GPS navigation
- And more!
Technical Parameters:
| Product Name |
TFT LCD Display |
| IC/LCM Driver IC |
NV3051F-L
|
| Active area |
135.36(H) * 216.576(V) |
| Lumens degrees |
300-500cd/m² |
| Viewing direction |
ALL O’CLOCK |
| Mechanical OutlineSize(W*H*T) |
156*264*4.85
|
| LCD Type |
Normally Black |
| Operating temperature |
-20+70 |
| Number of pixels |
800*3RGB(H)X1280(V) |
| Model Number |
TXW100055B0-HS |
| Size |
10.1 inches |
| Key Features |
Arduino TFT LCD Display, HDMI TFT LCD Display, HDMI TFT LCD Display with Capacitive Touch Screen |
Applications:
TXWEI TFT LCD Display
Brand Name: TXWEI
Model Number: TXW100055BO-HS
Place of Origin: Guangdong, China
Certification: CE ROHS FCC
Minimum Order Quantity: 1
Packaging Details: Cardboard
Delivery Time: 16
Supply Ability: 10000pcs
Mechanical OutlineSize(W*H*T): 156*264*4.85
LCD Type: Normally Black
Lumens degrees: 300-500cd/m²
Active area: 135.36(H) * 216.576(V)
Operating temperature: -20+70

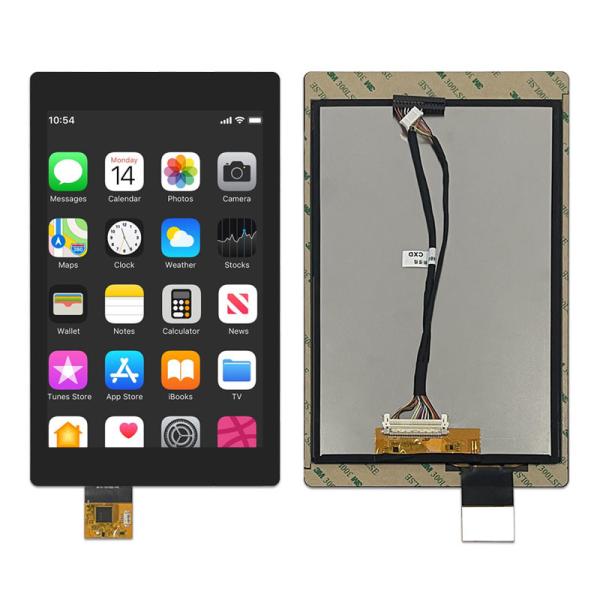

TXW100055B0-HS is a 10.1-inch 16:10 ratio full-color capacitive touch TFT LCD display screen with a resolution of 800 * 1280, IPS full view high-definition high brightness display effect, -20+70 working temperature, high brightness display of 300-500cd/m ², LVDS interface.
This product is independently designed, developed, and produced by Shenzhen Tianxianwei Technology Co., Ltd. It provides professional full process technical support services, first-class production quality control, a shipment yield rate of 99.7%, and professional after-sales service guarantee.
This product is widely used in industrial control equipment control panels, mobile payment products, security access control products, instruments and meters, medical equipment robot display panels and other fields.
